Junyi is a leading metal joint supplier specializing in high-quality metal pipe joints and metal tube connectors for lean manufacturing applications. With over 20 years of industry experience, we manufacture durable, rust-resistant metal joints for pipes, utilizing advanced surface treatments such as electrophoresis, zinc plating, and chrome/nickel plating.
Our metal joints for racks, pipe connector metal solutions, and metal pipe joints for slide rail systems are engineered for superior strength and long-term reliability. Whether you’re looking for metal joint supplies for workstation assembly, industrial shelving, or lean transformation projects, Junyi provides the ideal solutions tailored to your needs.
Hot Sales of Metal Joints Supplies
| P01 – T-Type Metal Joint The metal joint and lean pipes form a T-shaped structure. |
P02 – Right-Angle 3-Way Metal Joint Connects with lean pipes to form a 90° corner structure, ideal for fitting into wall corners and maximizing limited space.form a T-shaped structure. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
|---|---|---|---|---|---|---|---|
| JYJ-1 | T:2.5 | 0.147/kg | 100/set | JYJ-2 | T:2.5 | 0.230/kg | 50/set |
| JYJ-1S | T:2.3 | 0.131/kg | 100/set | JYJ-2S | T:2.3 | 0.208/kg | 50/set |
| Assembly：JY-1/1S*2+M6-25*1 | Assembly：JY-2/2S*1+JY-3/3S*1+M6-25*2 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P03 – Double Right-Angle Metal Joint Forms two right angles with lean pipes, with a center section extending outward. |
P04 – Cross-Shaped Metal Joint Connects with lean pipes to form a horizontal cross-shaped structure. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-3 | T:2.5 | 0.319/kg | 50/set | JYJ-4 | T:2.5 | 0.233/kg | 50/set |
| JYJ-3S | T:2.3 | 0.281/kg | 50/set | JYJ-4S | T:2.3 | 0.216/kg | 50/set |
| Assembly：JY-4/4S*1+JY-2/2S*2+M6-25*3 | Assembly：JY-4/4S*2+M6-25*2 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P05 – 5-Way Metal Joint Forms four right angles with lean pipes; the center pipe extends vertically, while the horizontal pipes extend in four directions. |
P06 – 90° Rotating Metal Joint Connects with lean pipes to form a vertical cross structure with intersecting pipes at a 90° angle. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-5 | T:2.5 | 0.405/kg | 25/set | JYJ-6 | T:2.5 | 0.101/kg | 100set |
| JYJ-5S | T:2.3 | 0.364/kg | 25/set | JYJ-6S | T:2.3 | 0.093/kg | 100/set |
| Assembly：JY-2/2S*4+M6-25*4 | Assembly：JY-7/7S*2+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P07 – 180° One-Way Adjustable Metal Joint Two joints combine to form a structure that adjusts 180° in one direction. |

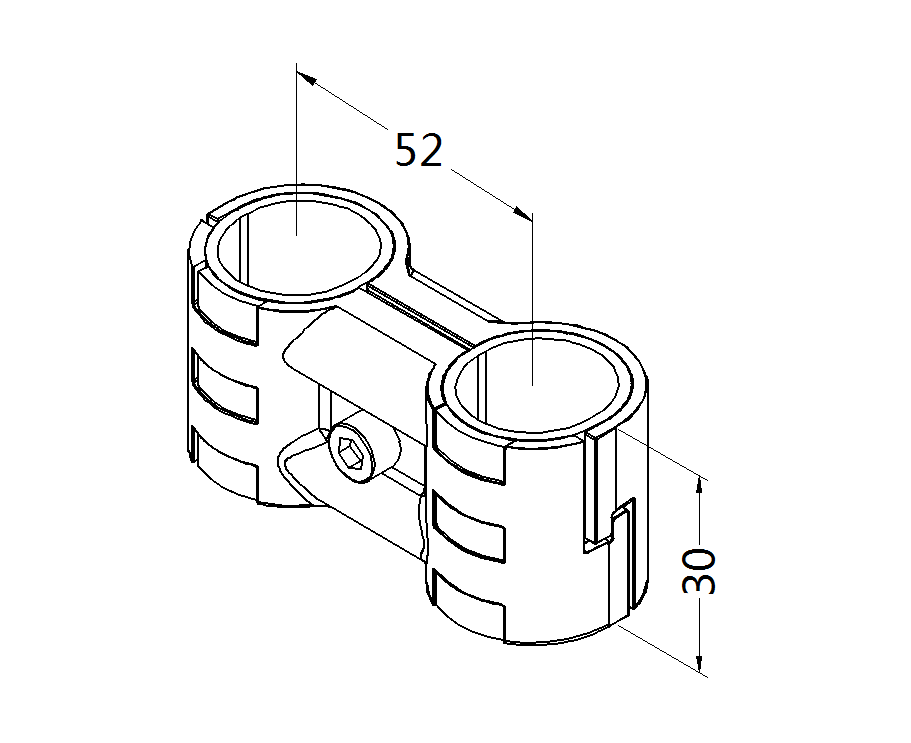

P08 – Double-Pipe Swivel Metal Joint Contains two inner plastic rings, allowing both pipes to rotate freely. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-7 | T:2.5 | 0.22/kg | 50/set | JYJ-8 | T:2.5 | 0.152/kg | 25set |
| JYJ-7S | T:2.3 | 0.208/kg | 50/set | JYJ-8S | T:2.3 | 0.142/kg | 25/set |
| Assembly：JY-5/5S*2+JY-6/6S*2+M6-25*2 | Assembly：JY-9/9S*2+JY-140*2+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||

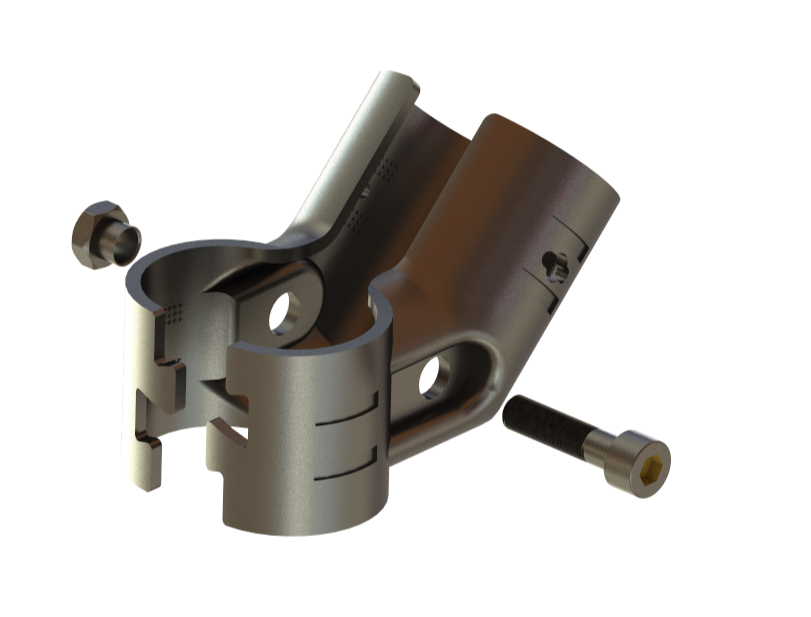

| P09 – 45° Metal Joint Connects with lean pipes to form a 45° angle. |
P10 – T-Type Swivel Metal Joint Features an internal plastic ring, enabling the T-shaped structure to rotate around the head as the central axis. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-9 | T:2.5 | 0.143/kg | 100/set | JYJ-10 | T:2.5 | 0.152/kg | 50/set |
| JYJ-9S | T:2.3 | 0.131/kg | 100/set | JYJ-10S | T:2.3 | 0.146/kg | 50/set |
| Assembly：JY-10A/10AS*1+JY-10B/10BS*1+M6-25*1 | Assembly：JY-12A/12AS*2+JY-140*1+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||

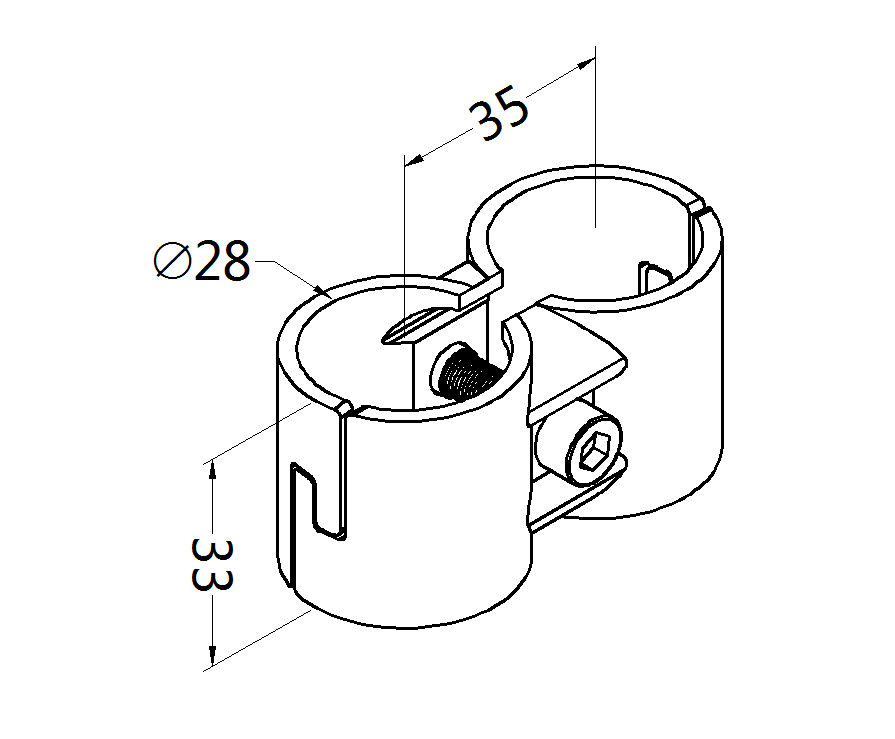

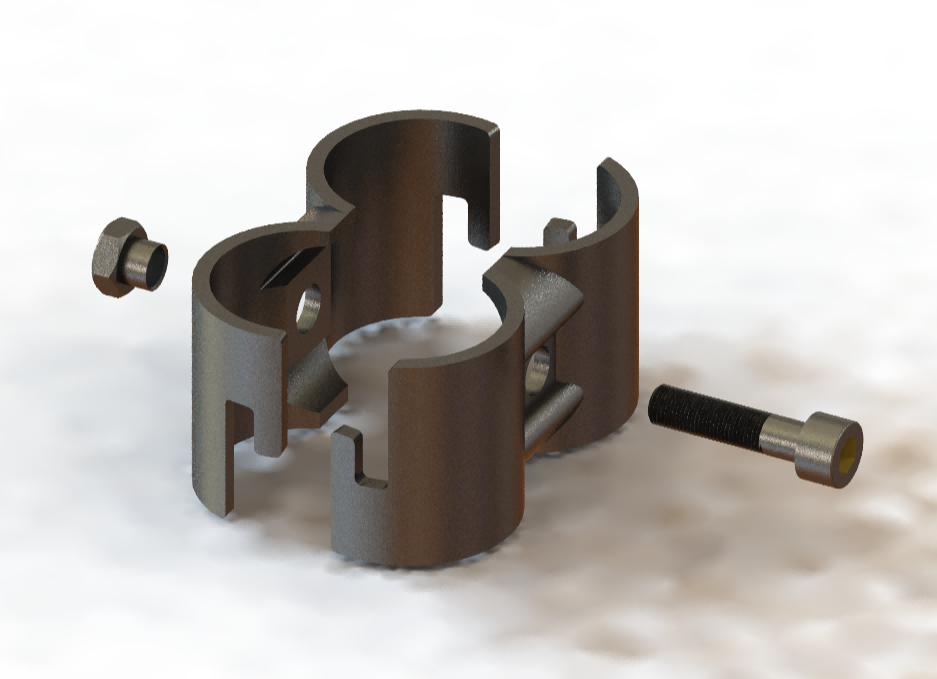

| P11 – Double-Pipe Parallel Metal Joint Forms a parallel structure with two lean pipes spaced 7mm apart. |
P12 – Dual-Side 180° Adjustable Metal Joint Connects with lean pipes to form a structure that allows 180° vertical adjustment on both sides. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-11 | T:2.5 | 0.113/kg | 100/set | JYJ-12 | T:2.5 | 0.412/kg | 25/set |
| JYJ-11S | T:2.3 | 0.107/kg | 100/set | JYJ-12S | T:2.3 | 0.363/kg | 25/set |
| Assembly：JY-13/13S*2+M6-25*1 | Assembly：JY-6/6S*4+JY-14/14S*2+M6-25*6 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P13 – Panel Mounting Metal Joint (Slotted Hole Adjustable) The U-shaped slot at the end allows secure mounting of tabletops, panels, or tool boards. |
P14 – 45° V-Shaped Metal Joint Connects with lean pipes to form a V-shaped structure with a 45° angle between the pipes. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-14 | T:2.5 | 0.087/kg | 100/set | JYJ-15 | T:2.5 | 0.197/kg | 50/set |
| JYJ-14S | T:2.3 | 0.084/kg | 100/set | JYJ-15S | T:2.3 | 0.181/kg | 50/set |
| Assembly：JY-39/39S*1+JY-40/40S*1+M6-10*1 | Assembly：JY-8/8S*2+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P15 – Curved Right-Angle Metal Joint Connects with lean pipes to form a 90° arc-shaped structure. |
P16 – Mid-Position Panel Mounting Joint Fixes tabletops, panels, or tool boards at the mid-height position of the lean pipe structure. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-16 | T:2.5 | 0.221/kg | 50/set | JYJ-17 | T:2.5 | 0.105/kg | 100/set |
| JYJ-16S | T:2.3 | 0.198/kg | 50/set | JYJ-17S | T:2.3 | 0.099/kg | 100/set |
| Assembly：JY-11/11S*2+M6-25*2 | Assembly：JY-17/17S*2+M6-10*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||

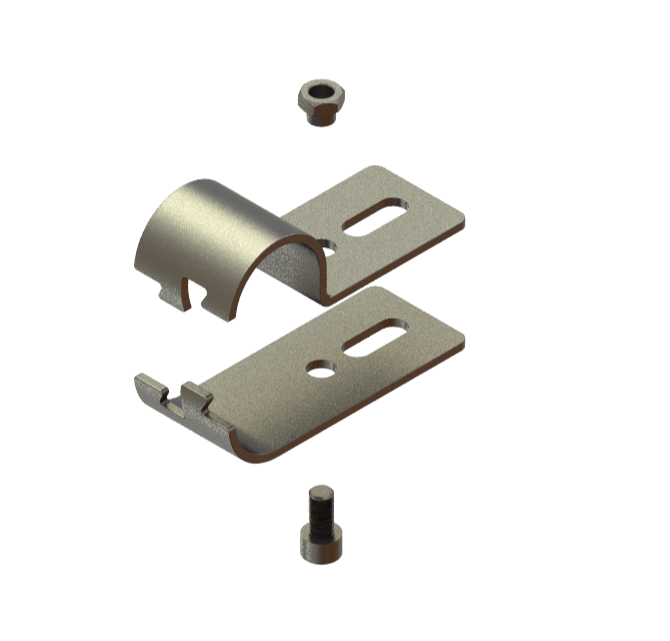

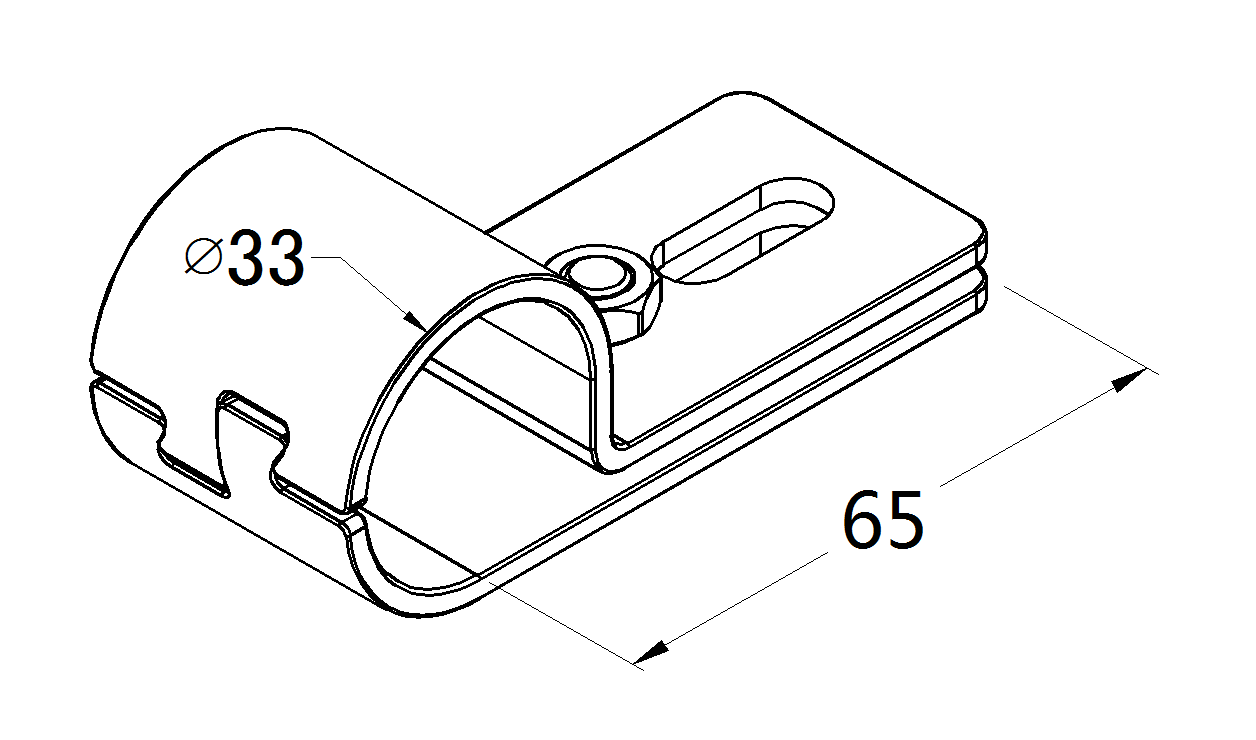

| P17 – Low-Position Panel Mounting Joint Fixes tabletops, panels, or tool boards beneath the lean pipe structure. |
P18 – Double-Pipe T-Shaped Metal Joint Connects with lean pipes to form a T-shaped structure with two parallel pipes. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-19 | T:2.5 | 0.114/kg | 100/set | JYJ-20 | T:2.5 | 0.268/kg | 50/set |
| JYJ-19S | T:2.3 | 0.110/kg | 100/set | JYJ-20S | T:2.3 | 0.265/kg | 50/set |
| Assembly：JY-26/26S*1+JY-27/27S*1+M6-10*1 | Assembly：JY-30/30S*2+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
| P19 – φ33mm T-Type Metal Joint Features a φ33mm head and φ28mm tail, designed to connect φ33mm and φ28mm lean pipes seamlessly. |

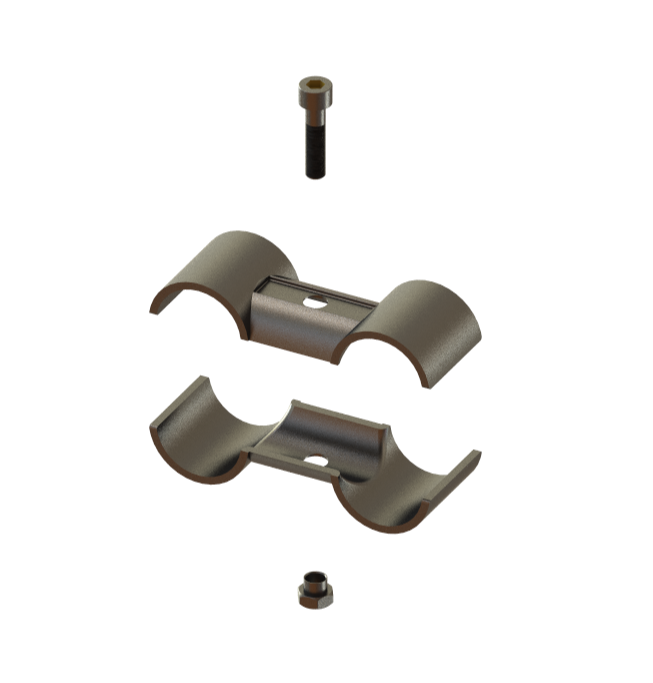

P20 – Double-Pipe Parallel Metal Joint (37mm Spacing) Connects with lean pipes to form a parallel structure with a 37mm gap between the pipes. |
||||||
INQUIRY |
INQUIRY |
||||||
| Model | Thickness | Weight | Packing | Model | Thickness | Weight | Packing |
| JYJ-21 | T:2.5 | 0.148/kg | 50/set | JYJ-25 | T:2.5 | 0.141/kg | 100/set |
| JYJ-21S | T:2.3 | 0.143/kg | 50/set | JYJ-25S | T:2.3 | 0.133/kg | 100/set |
| Assembly：JY-31/31S*2+M6-25*1 | Assembly：JY-29/29S*2+M6-25*1 | ||||||
| [color: BK、WZ、VI、PI] | [color: BK、WZ、VI、PI] | ||||||
|
|
||||||
Metal Joints for Lean Production
Metal pipe joints are essential components designed to connect φ28mm lean pipes, ensuring strong and flexible structural assembly. These metal joints for pipes feature a dovetail interlocking design, where two joint pieces securely clamp the pipe using an M6 screw and nut. The surface is treated with electrophoresis, zinc plating, or chrome plating, providing superior rust resistance, wear resistance, and extended service life.
Enhanced Production Flexibility | Easily reconfigure and adjust structures as needed.
Improved Structural Stability | High load-bearing capacity ensures durability.
Increased Assembly Efficiency | Simple, tool-assisted installation for quick setup.
Superior Durability & Corrosion Resistance | Long-lasting metal pipe connector joints withstand industrial environments.
Selecting the right metal joints for pipes depends on the operational environment and industry requirements. Below are recommended options based on different conditions:
- Coastal & Island Regions
Recommended: Black electrophoresis metal joints for racks + inner anti-rust coated lean pipes.
We recommend this because:
The black electrophoresis metal pipe joint is coated with a protective black paint, which offers excellent corrosion resistance. When paired with lean pipes featuring an internal anti-rust coating, it provides enhanced durability and protection against the high-salinity conditions found in coastal and island environments.
- Tropical Rainforest Climates
Recommended: Black electrophoresis pipe connector metal + inner anti-rust coated lean pipes.
We recommend this because:
High humidity levels accelerate metal corrosion. The black electrophoresis layer and internal anti-rust coating significantly improve moisture resistance.
- Industries with Chemical Exposure (Textile, Chemical, Automotive, Military, etc.)
Recommended: Black electrophoresis metal joints + anti-rust ABS lean pipes.
We recommend this because:
These industries generate oil residues and chemical exposure. ABS lean pipes offer superior chemical resistance, strength, and wear resistance, making them ideal for harsh environments.
- Anti-Static Environments
Recommended: Anti-static metal joint supplies (zinc/nickel/chrome plated) + anti-static lean pipes or stainless steel pipes.
We recommend this because:
Anti-static lean pipes contain conductive plastic coatings, directing static electricity safely to the ground (conductivity value: 10⁶ to 10⁹ Ω). The plated layers on metal joints for pipes also enhance conductivity, ensuring a controlled electrostatic discharge environment.
- High-Temperature Environments
Recommended: Stainless steel pipes + metal pipe joints with zinc/nickel/chrome plating.
We recommend this because:
Zinc, nickel, or chrome-plated metal pipe connector joints offer excellent heat resistance, maintaining structural integrity under prolonged high temperatures.
- What types of lean pipes are compatible with your metal pipe joints?
Supports φ28mm, φ33mm & other common lean pipe diameters.
Compatible with steel-plastic pipes, aluminum alloy pipes, and stainless steel pipes.
- What is your manufacturing process?
We utilize stamping + electroplating processes to ensure strength and durability.
- What types of metal joints are available?
We provide corner joints, three-way joints, four-way joints, and T-Type joints, etc.
Options include fixed-angle joints and adjustable-angle joints.
- What is the load-bearing capacity of your metal joints?
We provide detailed load capacity data upon request.
- Do you offer custom metal joints?
Yes, we support customized metal joints based on client specifications and drawings.
- What is your minimum order quantity (MOQ)?
Contact us for MOQ details based on product type and customization needs.
- What surface treatments do your metal pipe joints have?
Available finishes include electrophoresis, zinc plating, and chrome plating for enhanced corrosion resistance.
- How do I install metal pipe joints?
Installation is weld-free, using M6*25 screws and nuts.
